The Best Singlemode Transceiver Hp

100% Cisco Meraki Compatible. Guaranteed.

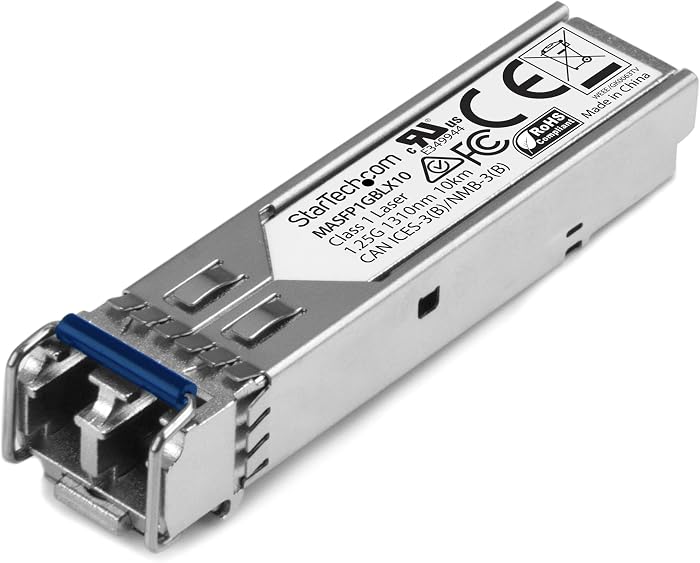

The MASFP1GBLX10 is a Cisco Meraki MA-SFP-1GB-LX10 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki brand compatible switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

•   Wavelength: 1310nm

•   Maximum Data Transfer Rate: 1.25 Gbps

•   Type: Single Mode Connector

•   Connection Type: LC Connector

•   Maximum Transfer Distance: 10 km (6.2 mi)

•   MTBF: 3,092,408 hours

•   Power Consumption: Less than 1 Watt

•   Digital Diagnostics Monitoring (DDM): Yes

This SFP module is hot-swappable making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a LIFETIME WARRANTY and FREE LIFETIME MULTILINGUAL TECHNICAL SUPPORT. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the dependability and reliability you need to ensure consistent network performance.

Aruba 1G SFP LC LX 10km SMF XCVR

100% HP Compatible. . The J9151E-ST is a HP J9151E compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand compatible switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBase-LR compliant networks, with a maximum distance of up to 10 km (6. 2 mi). Technical Specifications: Wavelength: 1310nm Maximum Data Transfer Rate: 10 Gbps Type: Single Mode Connection Type: LC Maximum Transfer Distance: 10 km (6. 2 mi) MTBF: 1, 386, 624, 697 hours Power Consumption: Digital Diagnostics Monitoring (DDM): Yes This SFP+ module is hot-swappable making upgrades and replacements seamless by minimizing network disruptions. StarTech SFPs All StarTech SFP & SFP+ transceiver modules are backed by a STARTECH LIFETIME and FREE LIFETIME MULTILINGUAL TECHNICAL SUPPORT. StarTech offers a wide variety of SFP+ modules and direct-attach SFP+ Cables, providing the dependability and reliability you need to ensure consistent network performance.

A

100% HP Compatible. . The J9153A-ST is a HP J9153A compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand compatible switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBase-ER compliant networks, with a maximum distance of up to 40 km (24. 8 mi). Technical Specifications: Wavelength: 1550nm Maximum Data Transfer Rate: 10 Gbps Type: Single Mode Connection Type: LC Maximum Transfer Distance: 40 km (24. 8 mi) MTBF: 426, 514, 897 hours Power Consumption: Digital Diagnostics Monitoring (DDM): Yes This SFP+ module is hot-swappable making upgrades and replacements seamless by minimizing network disruptions. StarTech SFPs All StarTech SFP & SFP+ transceiver modules are backed by a STARTECH LIFETIME and FREE LIFETIME MULTILINGUAL TECHNICAL SUPPORT. StarTech offers a wide variety of SFP+ modules and direct-attach SFP+ Cables, providing the dependability and reliability you need to ensure consistent network performance.

Gigabit SFP Transceiver Module Compatible with Cisco GLC-LH-SMD, Ubiquiti UF-SM-1G, Netgear AGM732F, Supermicro, Mikrotik and more brands

Specifications

Compatible for Ubiquiti transceiver
1000Base-LX/LH, SFP transceiver module for SMF, 1310-nm wavelength, dual LC connector
Data Rate: 1.25Gb/s
Reach: 10km
Fiber Type: Duplex LC singlemode fiber
Transmitter Laser：1310nm FP
TX Power (dBm): -10~-3
Rx Sens. (dBm): ＜-22
DDM/DOM: Yes
Temp. Range(°C): 0~70
Single 3.3V Power and TTL Logic Interface
Class 1 FDA and IEC60825-1 Laser Safety Compliant
Compliant with MSA SFP Specification
Compliant with SFF-8472

Application:
Ubiquiti EdgeRouter:
ER-X-SFP
ERPro-8
Ubiquiti EdgeSwitch:
ES-16-150W
ES-24-250W
ES-24-500W
ES-48-500W
ES-24-LITE
ES-48-LITE
ES-12F
ES-8-150W

Quality Control:
All modules are fully compliant with MSA standard. All modules also meet the most important standards and norms for electronic products. The continuous control of product quality before, during and after the manufacturing process is the top priority. Each produced batch is scheduled with standardized quality assurance procedures and the production process is constantly monitored and supervised.

Test Procedures for Optical Transceivers:
Laser and photodiode test before environment chamber
48 hours environment chamber reliable sample test
Laser and photodiode test after environment chamber
Compatibility & application test
Final test: Transfer on real fiber

Sincere Customer Service:
We insist on Sincere, Effective, Responsive and Knowledgeable service to each customer. Any tech or order issue, just feel free to contact us. We also welcome and well appreciate your unbiased and honest suggestion.

The 1000Base-LX Industrial SFP Single-Mode LC Module, model TI-MGBS10, is designed to operate within a wide temperature range and is well suited for industrial environments. This SFP module works with standard SFP slots found on industrial switches and fiber converters. The TI-MGBS10 is compatible with Duplex LC fiber connector types and supports gigabit single-mode fiber connections at distances of up to 10 kilometers (6.2 miles).
Fiber Applications
Long distance fiber networking for industrial, manufacturing, and corporate / education campus applications.
Fiber Mode / Distance
Single-Mode transceiver spans distances up to 10km (6.2 miles) and supports up to 1.25Gbps.
Compatibility
Hot-pluggable with a MSA compliant SFP slot and compatible with fiber cables with LC-type duplex connectors.

PACKAGE CONTENTS

• TI-MGBS10
• Quick Installation Guide

10GBASE-LR SFP+ transceiver module compatible for HP J9151A
Data Rate: 10Gb/s
Wave Length: 1310nm
Reach: 10km
DDM/DOM: Yes
Fiber Type: Single-mode fiber (SMF)
Tx Power(dBm): -6.5 ~ -0.5
Rx Sens.(dBm): ＜ -14.4
Temperature: 0℃ ~ +70℃
Interface: LC duplex

Support on a wide range of HP equipment, such as:
HPE 2920
HPE 1950
HPE 3800
HPE 3500 yl
HPE 5400R
HPE 2530
