Top 9 Smd Vacuum

Description:
A machine for two simultaneous operation and single patch speed in the 2 seconds 1PCS range, the unique static noise design makes the machine work quietly. (Such as BGA, QPF and other large IC can be used to operate the suction cup, with your fingers to block the use of a large number of components, such as BGA, QPF and other large ICs can be used to hold the SMD components. There is a hole in the pen suck, put the finger after the release of the release), because we put the machine’s suction range strictly control the viscosity of the solder paste, the machine’s suction size adjustable knob, so do not worry SMD components sucked up to the solder paste printed on the paste after the phenomenon was sucked back.

Package Included:
1 x Pump Vacuum Suction Pen Placement Machine
2 x Vacuum Suction Pen
2 x Needles (1.6mm)
2 x Sucker （0.3mm,10mm）

SE’s durable, lightweight vacuum pen comes with the tools you need for soldering, jewelry-making, and other delicate projects. This set includes suction cups in various sizes and capacities so you can position IC SMD units, jewels, residue, dust, and other fine and fragile items with ease. We have also provided both straight and angled interchangeable tips for handling such components with even greater convenience.

PRODUCT FEATURES:

Length of pen: 5-¼

Pen material: Aluminum alloy

(3) Types of interchangeable tips:

Straight tip

40-degree tip

30-degree tip

(3) Suction cups and load capacities:

3mm Small cup — Capacity: 3 g (0.01 oz)

7mm Medium cup — Capacity: 18 g (0.063 oz)

10mm Large cup — Capacity: 40 g (1.40 oz)

Comes in a plastic storage box with protective foam insert

HOW TO USE:

– Install a proper suction header on suction pen.

– Place the suction header onto the unit desired for pickup.

– Press button on the suction pen to let air out of the vacuum unit, then release the button to produce the vacuum suction force needed to pick up the unit.

– Place unit in the proper place, then press the button down to discharge air from the vacuum to release the unit from the suction header.

SE is committed to providing the customer with the best source for value possible. You will enjoy the quality, function and usefulness our SE EL-VP6 7-Piece Vacuum Pen Set with Interchangeable Tips and Cups has to offer.

IMPORTANT: Avoid receiving counterfeit items. Genuine SE products come with our SE logo on the packaging.

SE is a registered trademark protected by US Trademark Law.

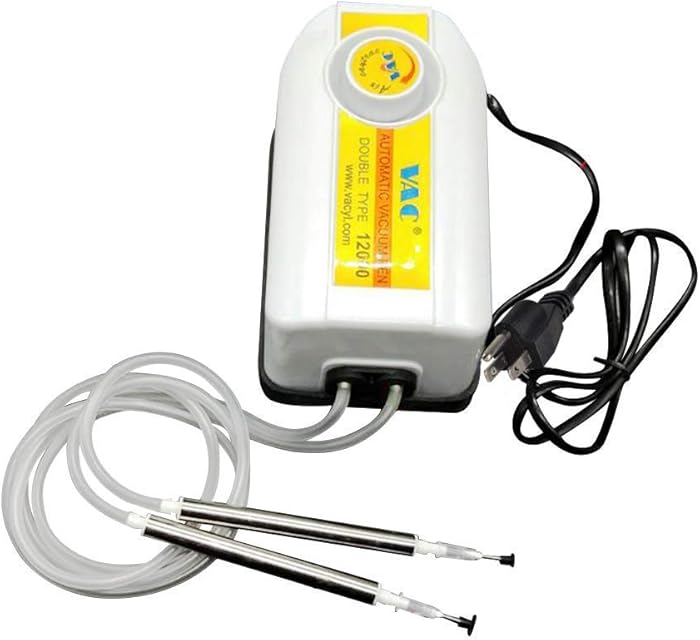

A machine for two simultaneous operation and single patch speed in 2 seconds 1PCS range.The unique static noise design makes the machine work quietly. (Such as BGA, QPF and other large IC can be used to operate the suction cup, with your fingers to block the use of a large number of components, such as BGA, QPF and other large ICs can be used to hold the SMD components. There is a hole in the pen suck, put the finger after the release of the release).We put the machine’s suction range strictly control the viscosity of the solder paste, the machine’s suction size adjustable knob, so do not worry SMD components sucked up to the solder paste printed on the paste after the phenomenon was sucked back.

Specification

Suction can be adjusted

Every unit comes with two pens. Both of them can be used at the same time for two workers to share on the assemble line. One can be a unplugged for back up.

Vacuum pressure adjustable

Easy operation. Block the hole with a finger on the pen to pick up a component, open the hole to release the component.

Voltage: 110V

Suction range: 0-12000pa

Tube length: 80cm

Chuck length: 120mm

Power cable length: 87cm

Size: 175*90*78mm

Weight: 1.5Kg

Package Included

1 x Pump Vacuum Suction Pen Placement Machine

2 x Vacuum Suction Pen

2 x Tube

3 x Needles (1.6mm)

2 x Sucker (3mm,10mm)

Description:
3 suction headers are provided with this handy suction pencil: large size for 40g, medium size for 18g, small size for 3g.
Specification:
Product Name: Vacuum Pen with Header
Color: White
Weight: 51g
Material: Plastic, Metal
Pen Size: 15 x 1.2cm / 5.9 x 0.5 inch (L*D)
Package Content:
2 x Vacuum Pen with 1 Bending Needle
6 x Suction Cups
How to Install:
a. Install a proper IC suction header on this suction pencil.
b. Place the suction header lever on IC.
c. Press down the button on the suction pencil to let out the air within the vacuum unit,then release the button to produce vacuum suction force to pick up IC.
d. Put the IC on a proper place,press down the button,the vacuum unit discharges air to let the IC fall off the suction header.

Material: aluminum & plasic
Total Length: 152mm Suction cup
sizes: 10mm/7mm/3mm
Package Content: 1x Vacuum Sucking Pen 3x Suction Headers
Put the IC on a proper place press down the button the vacuum unit discharges air to let the IC fall off the suction header.

Specification:

Model: L611938

Material: Metal + Plastic
Color: Black
Sucker diameter: 3mm, 7mm,10mm (2pcs/each size)

Suction pen length:13.2cm/5.2in

Suction pen diameter:1.2cm/0.5in

Weight: Approx.42g/1.5oz

Package List:
1 * Suction Pen
2 * Suction Tips
6 * Suckers

1 * Holder
